0026481020
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026481020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026481020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026481020 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN BKWY HEADER 2POS STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.057 | $0.055 | $0.047 | $0.041 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.038 | $0.034 | $0.032 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026481020 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN BKWY HEADER 2POS STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 730317 pcs | Data sheet | 0026481020 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 41661 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.890" (22.61mm) |
| Other Names | 0026-48-1020 002648-1020 0026481020-ND 26-48-1020 26481020 WM50002-02 WM50002-1020 WM50002-1020-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.128" (3.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position 0.156" (3.96mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.172" (4.37mm) |
| Contact Length - Mating | 0.590" (14.99mm) | Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
- Related products
- Related news
Related products
- Part#:
002645119 - Manufacturers:
Altech Corporation - Description:
FUSECH22X58AR40A690VAC 500VDC - In Stock:
2411
- Part#:

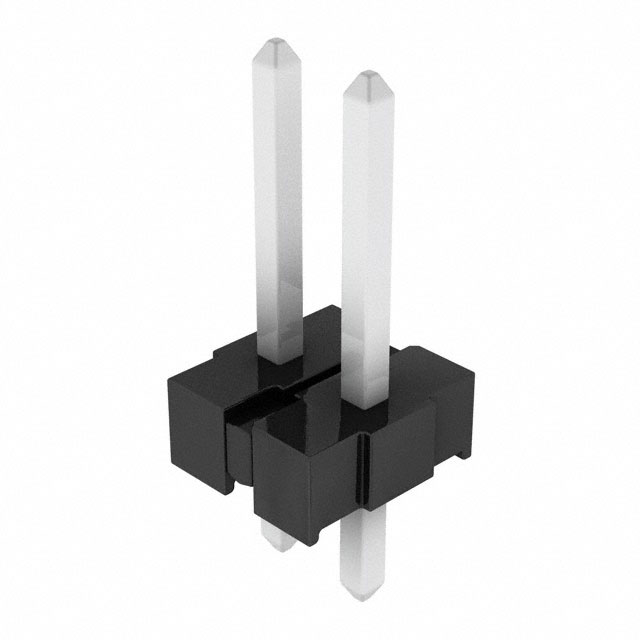

0026481021 - Manufacturers:
