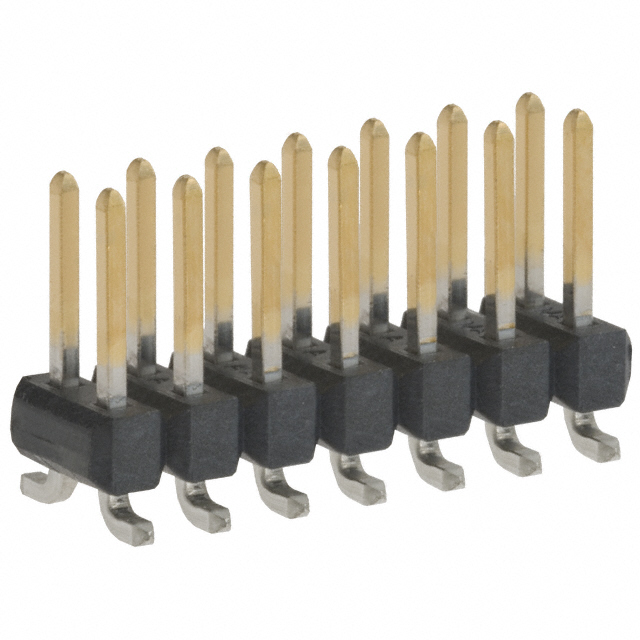

0015910140
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015910140 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015910140 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015910140 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 14POS .100" STR 15AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.511 | $0.463 | $0.397 | $0.33 | ||
| 1620 pcs | 6480 pcs | 11340 pcs | |||
| $0.274 | $0.251 | $0.245 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015910140 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 14POS .100" STR 15AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90421 pcs | Data sheet | 71308 Series Prod Spec71308, 30340 Pkg Drawing15-91-0140 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 71308 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 0015-91-0140 0015-91-0140-E 0015910140-E 15-91-0140 15-91-0140-E 15-91-0140-TB30 15910140 15910140-E A713080114N WM17461 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.090" (2.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 14 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
