0015910060

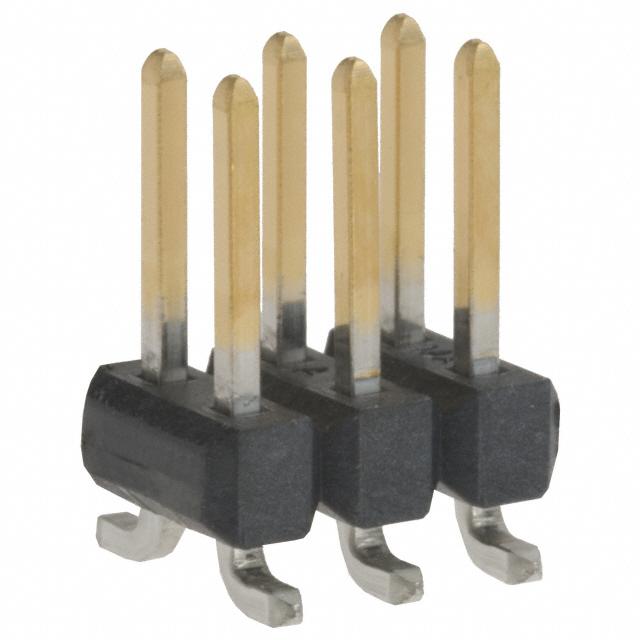

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015910060 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015910060 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015910060 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS .100" VERT 15AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.21 | $0.195 | $0.15 | $0.13 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.107 | $0.094 | $0.088 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015910060 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS .100" VERT 15AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 222420 pcs | Data sheet | 71308 Series Prod Spec71308, 30340 Pkg Drawing15-91-0060 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 71308 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0015-91-0060 0015-91-0060-P 0015910060-P 15-91-0060 15-91-0060-P 15910060 15910060-P 71308-0106N WM17457 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.090" (2.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
