0015445840

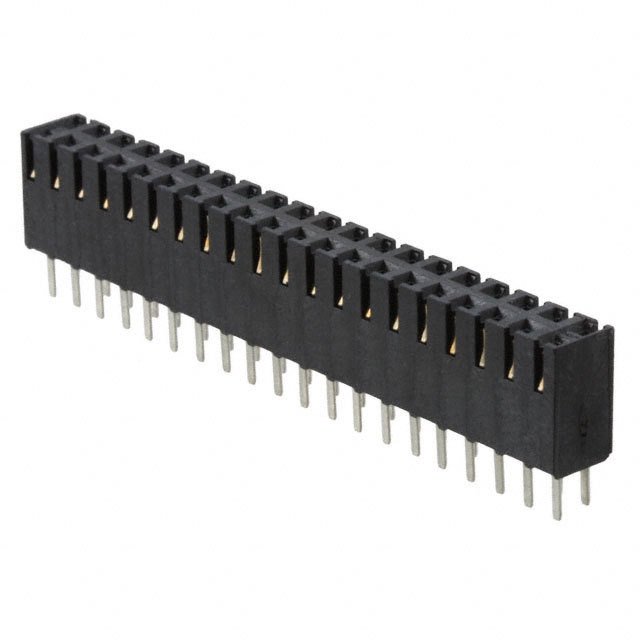

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015445840 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015445840 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015445840 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CGRID VT RCPT GOLD 40CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.082 | $4.619 | $4.503 | $4.157 | ||
| 100 pcs | 432 pcs | 864 pcs | |||
| $3.926 | $3.579 | $3.164 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015445840 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CGRID VT RCPT GOLD 40CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10140 pcs | Data sheet | 15445840 |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | C-Grid 71850 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0015-44-5840 15-44-5840 15445840 A718500147 WM4455 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.340" (8.64mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2.5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
