0015445820

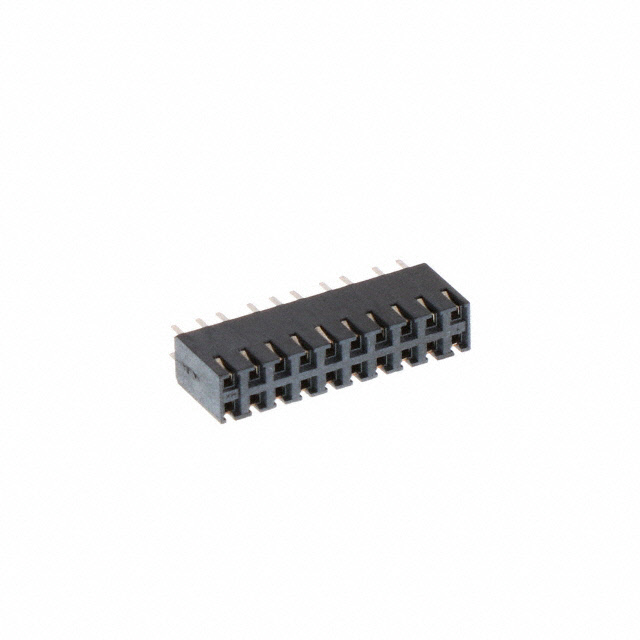

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015445820 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015445820 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015445820 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RCPT VERT GOLD 20CKT T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.433 | $3.283 | $2.984 | $2.835 | ||
| 100 pcs | 250 pcs | 864 pcs | 1728 pcs | ||
| $2.76 | $2.462 | $2.164 | $1.984 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015445820 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RCPT VERT GOLD 20CKT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17492 pcs | Data sheet | 0015445820 |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | C-Grid 71850 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0015-44-5820 15-44-5820 15445820 A-71850-0137 WM2592 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.340" (8.64mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2.5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
