0010845040

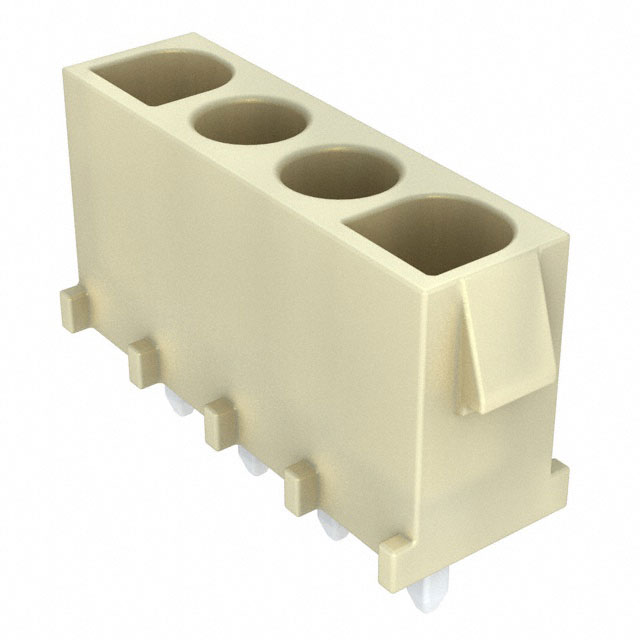

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010845040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010845040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010845040 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER PIN 94V-0 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.251 | $0.234 | $0.18 | $0.156 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.129 | $0.113 | $0.106 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010845040 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER PIN 94V-0 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198546 pcs | Data sheet | 00108450400010845040 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MLX 42002 |
| Row Spacing - Mating | - | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0010-84-5040 001084-5040 0010845040-ND 010-84-5040 01084-5040 010845040 10845040 42002-4C1A1 WM13102 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.550" (13.97mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.250" (6.35mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.169" (4.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 137.8µin (3.50µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
