0010844122

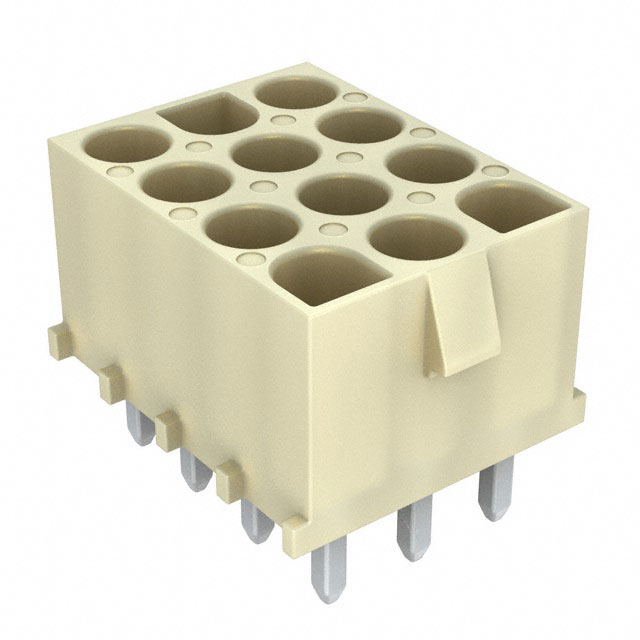

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010844122 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010844122 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010844122 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 12POS .084 VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.608 | $0.552 | $0.474 | $0.395 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.338 | $0.30 | $0.293 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010844122 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 12POS .084 VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66293 pcs | Data sheet | 10-84-yyyy |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | MLX 42002 | Row Spacing - Mating | 0.250" (6.35mm) |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Other Names | 0010-84-4122 0010-84-4122-P 0010844122-P 10-84-4122 10-84-4122-P 10844122 10844122-P A-42002-12A2A1 WM1268 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.550" (13.97mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 12 Position Header Connector 0.250" (6.35mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.169" (4.30mm) | Contact Finish Thickness - Post | 137.8µin (3.50µm) |
| Contact Finish Thickness - Mating | 137.8µin (3.50µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
