0010181150

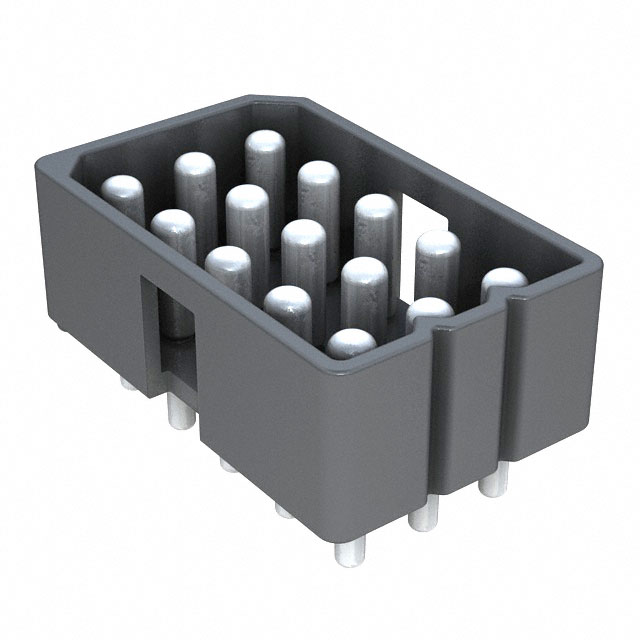

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010181150 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010181150 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010181150 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLK SKT 15POS 2.36MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 900 pcs | ||||
|---|---|---|---|---|---|
| $1.004 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010181150 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLK SKT 15POS 2.36MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33817 pcs | Data sheet | 0010181150 Drawing0010181150 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3099 |
| Row Spacing - Mating | 0.198" (5.03mm) | Pitch - Mating | 0.198" (5.03mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0010-18-1150 001018-1150 010-18-1150 01018-1150 010181150 10181150 30991501 |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.421" (10.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 15 position 0.198" (5.03mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Cartridge Brass |
| Contact Length - Post | 0.170" (4.32mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Telecommunications |
