0010181063

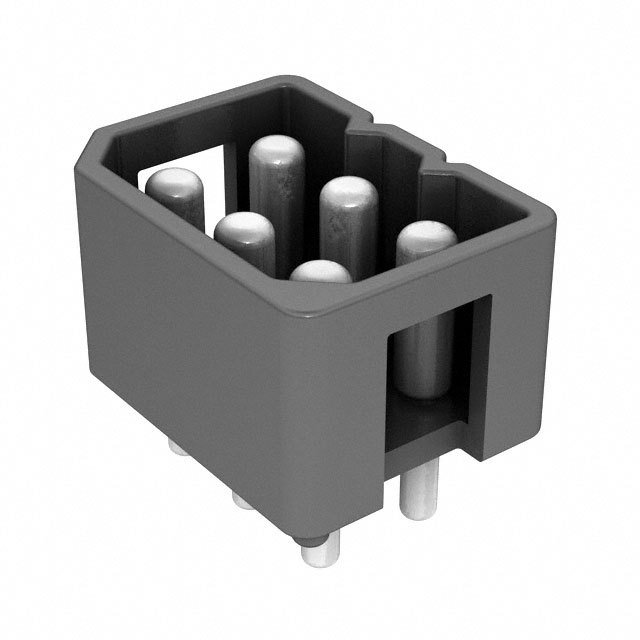

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010181063 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010181063 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010181063 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 093 SHRD PIN SKT HDRS 6CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010181063 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 093 SHRD PIN SKT HDRS 6CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5362 pcs | Data sheet | 10181063 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Standard .093 |
| Row Spacing - Mating | 0.198" (5.03mm) | Pitch - Mating | 0.198" (5.03mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0010-18-1063 010-18-1063 10-18-1063 1018-1063 10181063 3099P06B |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester | Insulation Height | 0.421" (10.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | - |
| Detailed Description | Connector Header Through Hole 6 position 0.198" (5.03mm) | Current Rating | - |
| Contact Type | Female Socket; Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.170" (4.32mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
