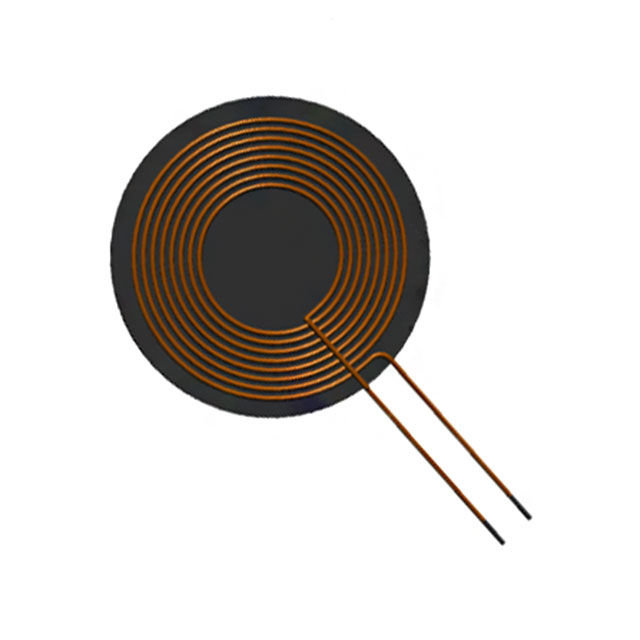

AWCCA-30N30H20-C01-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-30N30H20-C01-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-30N30H20-C01-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-30N30H20-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RECEIVER COIL, 1 COIL, 6.3UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.967 | $1.805 | $1.181 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.05 | $0.984 | $0.952 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-30N30H20-C01-B | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RECEIVER COIL, 1 COIL, 6.3UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36488 pcs | Data sheet | AWCCA-30N30H20-C01-B |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.18" Dia x 0.02" H (30.0mm x 0.5mm) |
| Series | AWCCA | Q @ Freq | 26 @ 100kHz |
| Other Names | 535-13610 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 6.3µH |
| Function | Receiver, Transmitter | Frequency - Self Resonant | - |
| Detailed Description | 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 140 mOhm | DC Resistance (DCR) | 140 mOhm |
| Current Rating | - | Current - Saturation | - |
