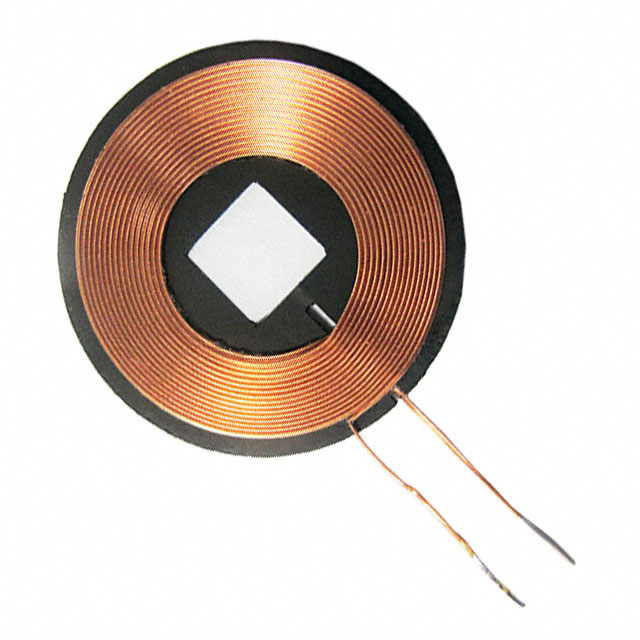

AWCCA-26R26H08-C01-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-26R26H08-C01-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-26R26H08-C01-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-26R26H08-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RX 1 COIL 1 LAYER 10UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.742 | $1.597 | $1.045 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.929 | $0.871 | $0.842 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-26R26H08-C01-B | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 10UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41181 pcs | Data sheet | AWCCA-26R26H08-C01-B Datasheet |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.024" Dia x 0.032" W (26.00mm x 0.80mm) |
| Series | AWCCA | Q @ Freq | 18.5 @ 100kHz |
| Other Names | 535-13308 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 10µH |
| Function | Receiver | Frequency - Self Resonant | - |
| Detailed Description | 1 Coil, 1 Layer 10µH Wireless Charging Coil Receiver 320 mOhm | DC Resistance (DCR) | 320 mOhm |
| Current Rating | - | Current - Saturation | - |
