APAE2338L2540DDDB1-T

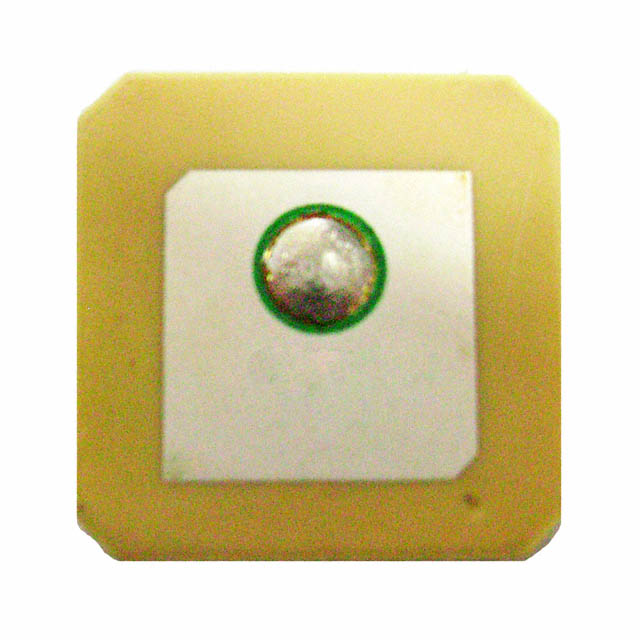

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APAE2338L2540DDDB1-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APAE2338L2540DDDB1-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APAE2338L2540DDDB1-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RF ANT 2.3GHZ CER PATCH PIN ADH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 100 pcs | 260 pcs |
|---|---|---|---|---|---|
| $0.761 | $0.686 | $0.612 | $0.551 | $0.49 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.429 | $0.355 | $0.331 | $0.318 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APAE2338L2540DDDB1-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RF ANT 2.3GHZ CER PATCH PIN ADH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73994 pcs | Data sheet | APAE2338L2540DDDB1-TAPAE Series-Patch AntennasAPAE2338L2540DDDB1-T Drawing |
| Category | RF/IF and RFID | VSWR | 1.5 |
| Termination | Pin | Series | - |
| Return Loss | - | Packaging | Tray |
| Other Names | 535-11951 APAE2338L2540DDDB1T |
Number of Bands | 1 |
| Mounting Type | Adhesive | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.181" (4.60mm) |
| Gain | 5dBic | Frequency Range | 2.323GHz ~ 2.353GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | Frequency (Center/Band) | 2.3GHz |
| Features | - | Detailed Description | 2.3GHz SDARS Ceramic Patch RF Antenna 2.323GHz ~ 2.353GHz 5dBic Pin Adhesive |
| Applications | SDARS | Antenna Type | Ceramic Patch |
