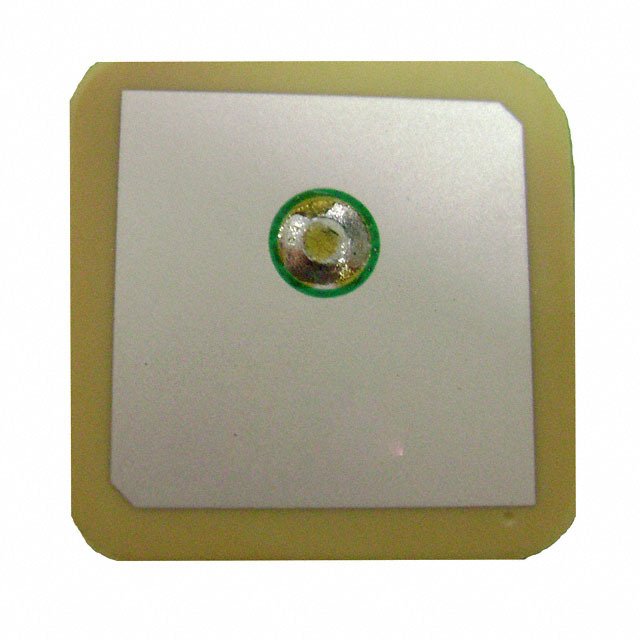

APAE1590R2540AKDB1-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APAE1590R2540AKDB1-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APAE1590R2540AKDB1-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APAE1590R2540AKDB1-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RF ANT 1.575/1.602GHZ CER PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 100 pcs | 260 pcs |
|---|---|---|---|---|---|
| $0.706 | $0.638 | $0.57 | $0.513 | $0.456 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.399 | $0.331 | $0.308 | $0.296 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APAE1590R2540AKDB1-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RF ANT 1.575/1.602GHZ CER PATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78369 pcs | Data sheet | APAE1590R2540AKDB1-T DrawingAPAE1590R2540AKDB1-TAPAE Series-Patch Antennas |
| Category | RF/IF and RFID | VSWR | 1.5 |
| Termination | Pin | Series | - |
| Return Loss | -7dB | Packaging | Tray |
| Other Names | 535-11940 APAE1590R2540AKDB1T |
Number of Bands | 2 |
| Mounting Type | Adhesive | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.181" (4.60mm) |
| Gain | - | Frequency Range | 1.575GHz ~ 1.608GHz |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz, 1.602GHz |
| Features | - | Detailed Description | 1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz ~ 1.608GHz Pin Adhesive |
| Applications | GLONASS, GPS | Antenna Type | Ceramic Patch |
