AEMIF-0805-201M-16-T

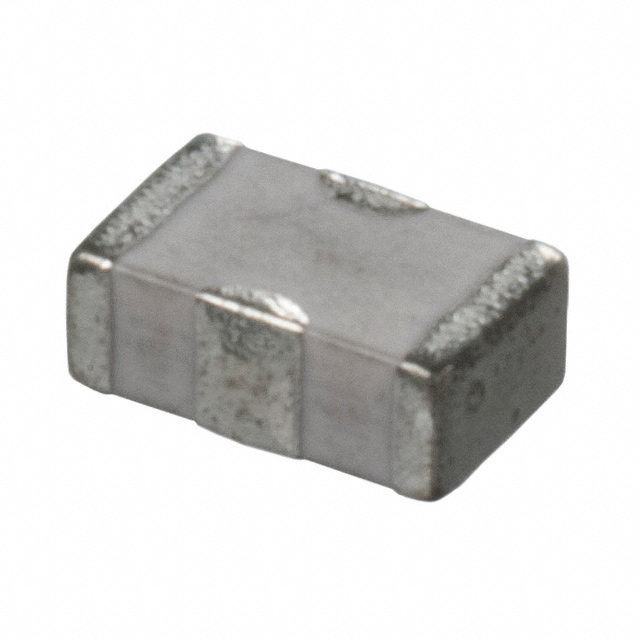

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AEMIF-0805-201M-16-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AEMIF-0805-201M-16-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AEMIF-0805-201M-16-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | FILTER RC(PI) 1 OHM 200MHZ SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | |
|---|---|---|---|---|---|
| $0.061 | $0.057 | $0.054 | $0.05 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AEMIF-0805-201M-16-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | FILTER RC(PI) 1 OHM 200MHZ SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 448013 pcs | Data sheet | AEMIF-0805 Series Datasheet |
| Category | Filters | Voltage - Rated | 16V |
| Values | R = 1 Ohm | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Series | AEMIF-0805 | Resistance - Channel (Ohms) | 1 |
| Packaging | Tape & Reel (TR) | Package / Case | 0805 (2012 Metric) |
| Other Names | 535-12766-2 | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.046" (1.17mm) |
| Filter Order | 2nd | ESD Protection | No |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 1 Channel R = 1 Ohm 250mA 0805 (2012 Metric) | Current | 250mA |
| Center / Cutoff Frequency | 200MHz (Cutoff) | Attenuation Value | 20dB @ 450MHz ~ 2GHz |
| Applications | General Purpose |
