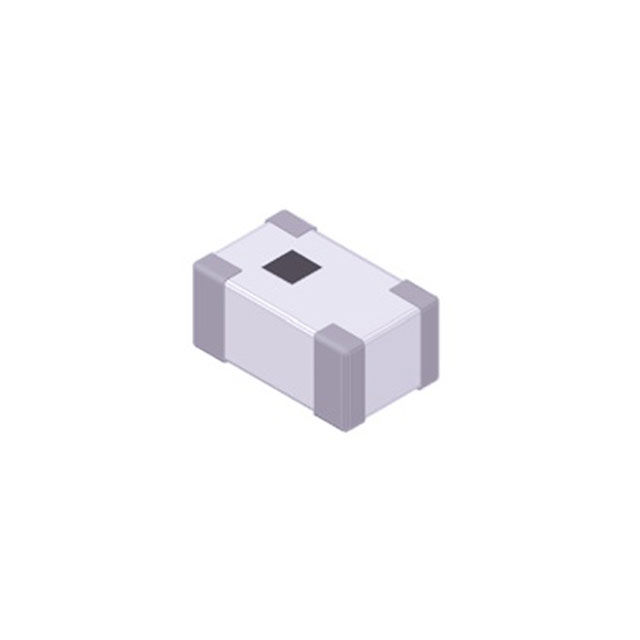

ACMF-21A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACMF-21A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACMF-21A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACMF-21A |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | COMMON MODE CHOKE 200MA 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACMF-21A | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 200MA 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5965 pcs | Data sheet | ACMF-21A |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Series | ACMF-21A | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 0805 (2012 Metric), 4 Lead |
| Other Names | 535-12199-2 ACMF-21A-T |
Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.039" (1.00mm) | Filter Type | Signal Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Surface Mount 200mA DCR 1.6 Ohm |
| DC Resistance (DCR) (Max) | 1.6 Ohm | Current Rating (Max) | 200mA |
| Approvals | - |
