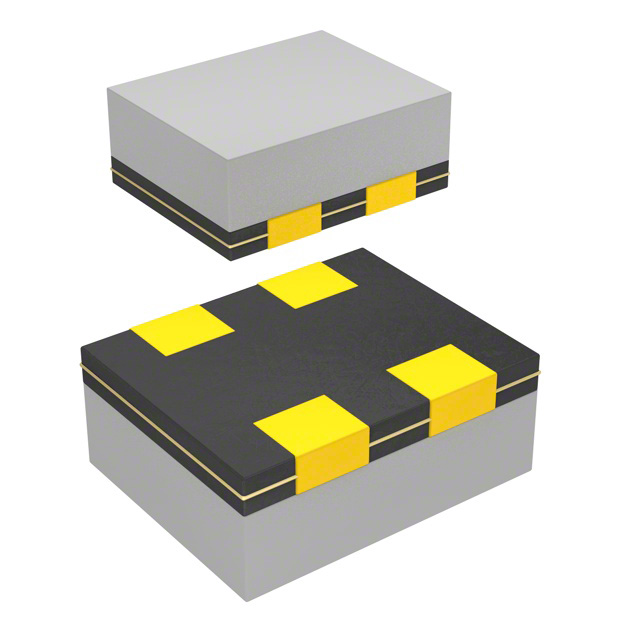

ACMF-04-900-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACMF-04-900-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACMF-04-900-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACMF-04-900-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | CMC 100MA 2LN 90 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACMF-04-900-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | CMC 100MA 2LN 90 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5909 pcs | Data sheet | ACMF-04 Pkg Drawing |
| Category | Filters | Voltage Rating - DC | 10V |
| Voltage Rating - AC | - | Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
| Series | ACMF-04 | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 0504 (1210 Metric), 4 Lead |
| Other Names | 535-12198-2 ACMF-04-900 |
Operating Temperature | -55°C ~ 150°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 90 Ohms @ 100MHz | Height (Max) | 0.026" (0.65mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 100mA DCR 2.8 Ohm (Typ) | DC Resistance (DCR) (Max) | 2.8 Ohm (Typ) |
| Current Rating (Max) | 100mA | Approvals | - |
