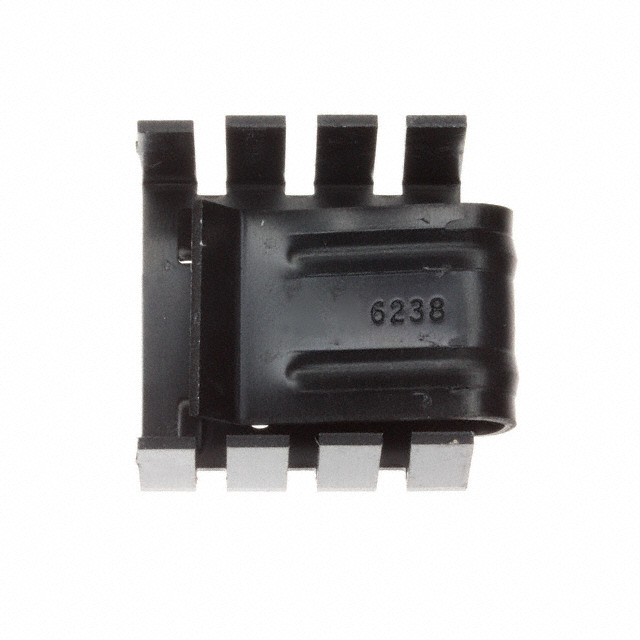

6238BG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6238BG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6238BG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6238BG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | BOARD LEVEL HEAT SINK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | ||||
|---|---|---|---|---|---|
| $0.311 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6238BG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | BOARD LEVEL HEAT SINK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65180 pcs | Data sheet | Standard Heatsinks Catalog623xB(G,‐MTG) |
| Category | Fans, Thermal Management | Width | 1.005" (25.53mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.60°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 40°C |
| Package Cooled | TO-220 | Other Names | 032989 |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 7 Weeks | Length | 1.159" (29.44mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.610" (15.49mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level, Vertical |
| Attachment Method | Clip |
