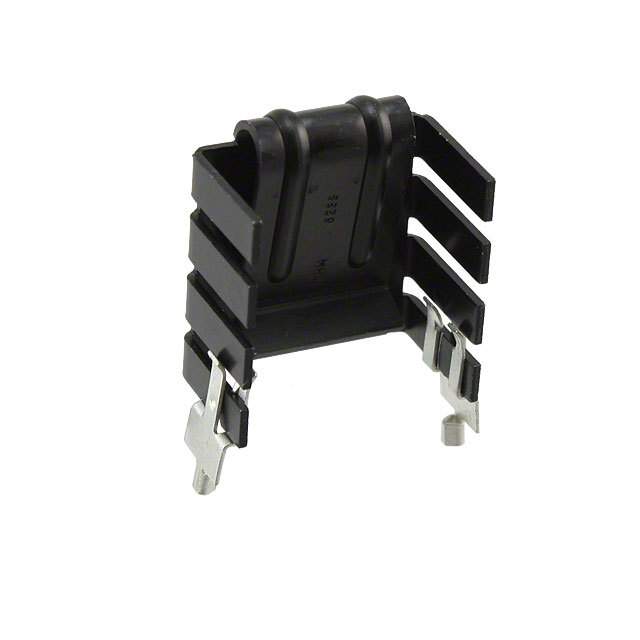

6238B-MTG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6238B-MTG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6238B-MTG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6238B-MTG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | BOARD LEVEL HEATSINK .61" TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.361 | $0.346 | $0.328 | $0.32 | $0.315 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.294 | $0.277 | $0.251 | $0.242 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6238B-MTG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | BOARD LEVEL HEATSINK .61" TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97928 pcs | Data sheet | Standard Heatsinks Catalog623xB(G,‐MTG) |
| Category | Fans, Thermal Management | Width | 1.005" (25.53mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.60°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 40°C |
| Package Cooled | TO-220 | Other Names | 042272 6238B-MTG-ND 6238BMTG HS416 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.159" (29.44mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.610" (15.49mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
