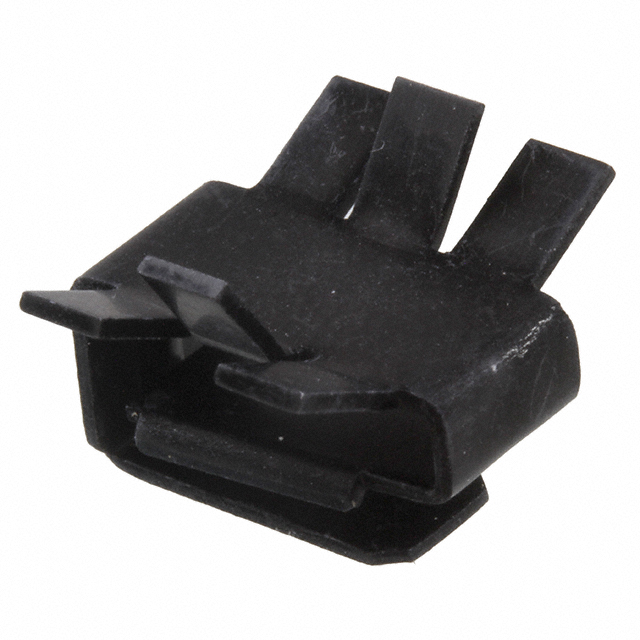

580100B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 580100B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 580100B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 580100B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK SLIDE-ON 8-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.276 | $0.264 | $0.25 | $0.244 | $0.241 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.224 | $0.211 | $0.191 | $0.185 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 580100B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK SLIDE-ON 8-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104393 pcs | Data sheet | Standard Heatsinks Catalog580100B00000G |
| Category | Fans, Thermal Management | Width | 0.600" (15.24mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 30.00°C/W |
| Thermal Resistance @ Forced Air Flow | 8.00°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 30°C |
| Package Cooled | 8-DIP | Other Names | 002662 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.562" (14.27mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.450" (11.43mm) | Diameter | - |
| Detailed Description | Heat Sink 8-DIP Aluminum 1.0W @ 30°C Top Mount | Attachment Method | Press Fit, Slide On |
