566010B03400G

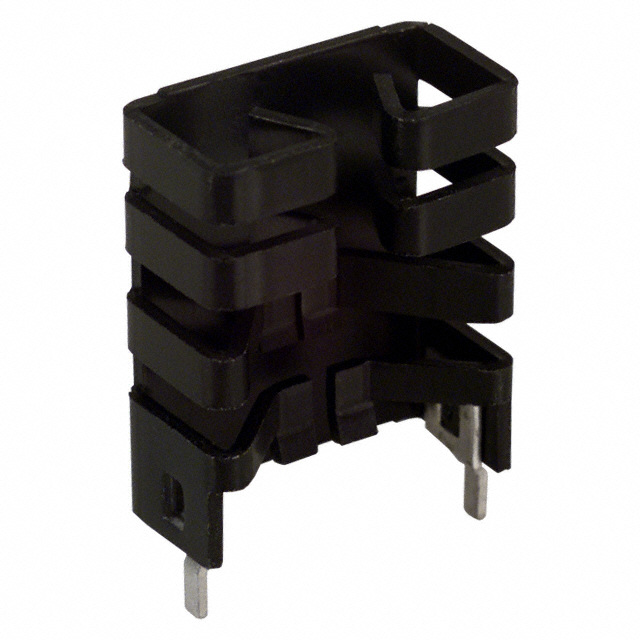

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 566010B03400G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 566010B03400G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 566010B03400G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK W/TAB BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.485 | $0.462 | $0.45 | $0.437 | $0.413 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.389 | $0.365 | $0.34 | $0.328 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 566010B03400G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK W/TAB BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65820 pcs | Data sheet | 566010B0xx00GStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 11.50°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 30°C |
| Package Cooled | Multiwatt, SIP | Other Names | 042003 HS377 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.220" (30.99mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink Multiwatt, SIP Aluminum 2.0W @ 30°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
