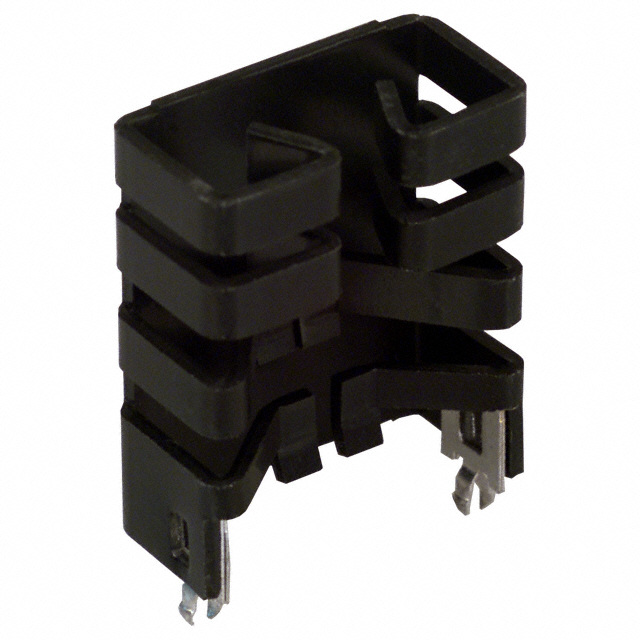

566010B02800G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 566010B02800G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 566010B02800G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 566010B02800G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 CLIP-ON W/TABS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.671 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 566010B02800G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 CLIP-ON W/TABS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52007 pcs | Data sheet | Standard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 11.50°C/W |
| Thermal Resistance @ Forced Air Flow | 5.00°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 30°C |
| Package Cooled | Multiwatt, SIP | Other Names | HS381 |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 7 Weeks | Length | 1.220" (30.99mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.500" (12.70mm) |
| Diameter | - | Detailed Description | Heat Sink Multiwatt, SIP Aluminum 2.0W @ 30°C Board Level, Vertical |
| Attachment Method | Clip and Board Locks |
