342949

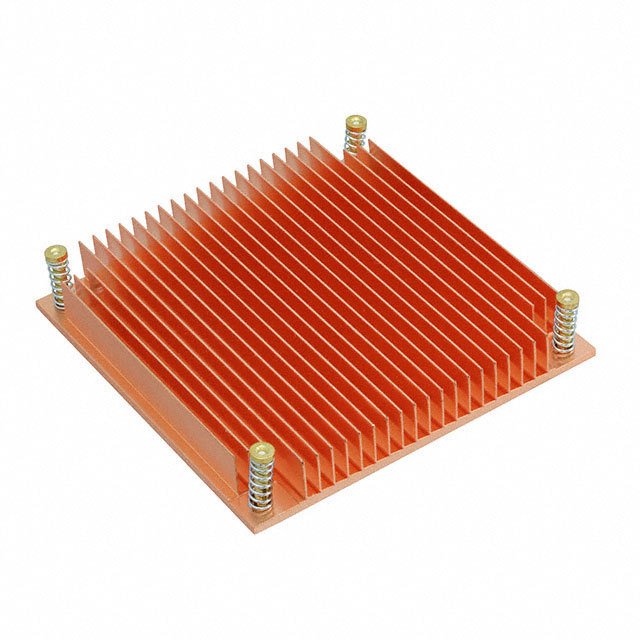

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 342949 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 342949 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 342949 |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | COPPER HEATSINK 80X80X12MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $18.373 | $17.293 | $16.212 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $15.131 | $14.591 | $13.78 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 342949 | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | COPPER HEATSINK 80X80X12MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2813 pcs | Data sheet | 342940-50 Datasheet |
| Category | Fans, Thermal Management | Width | 3.150" (80.00mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 5.10°C/W |
| Thermal Resistance @ Forced Air Flow | 1.20°C/W @ 200 LFM | Shape | Square, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | BGA | Other Names | 342949-ND HS485 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | AavSHIELD 3C |
| Material | Copper | Manufacturer Standard Lead Time | 8 Weeks |
| Length | 3.150" (80.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.472" (12.00mm) | Diameter | - |
| Detailed Description | Heat Sink BGA Copper Top Mount | Attachment Method | Push Pin |
