209257016001013

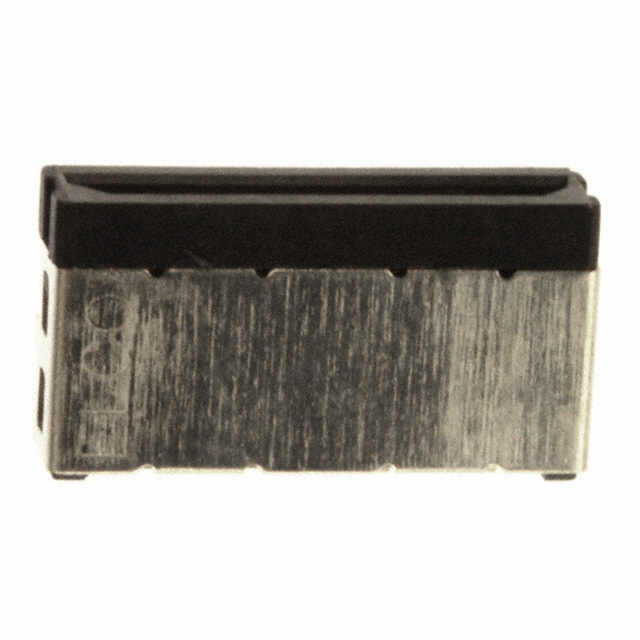

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 209257016001013 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 209257016001013 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 209257016001013 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CONN RECEPTACLE 16 POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1100 pcs | 2200 pcs | 3300 pcs | ||
|---|---|---|---|---|---|
| $0.998 | $0.964 | $0.929 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 209257016001013 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN RECEPTACLE 16 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35537 pcs | Data sheet | XX-9257 Reduced Size I/O |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | 9257 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tape & Reel (TR) |
| Other Names | 209257016001013-ND 478-4514-2 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.118" (3.00mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 16 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold |
| Current Rating | 1A per Contact | Contact Type | Female Blade Socket |
| Contact Shape | - | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
