209257012101016

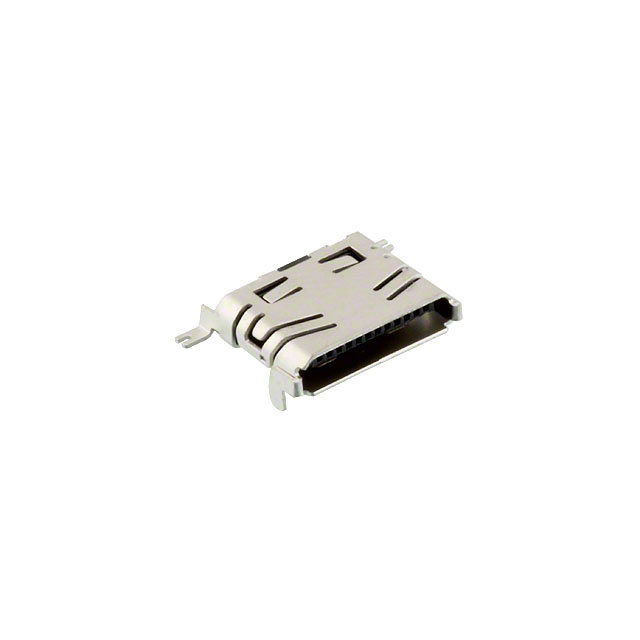

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 209257012101016 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 209257012101016 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 209257012101016 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CONN RECEPTACLE 12 POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1200 pcs | 2400 pcs | 6000 pcs | 8400 pcs | |
|---|---|---|---|---|---|
| $0.27 | $0.252 | $0.239 | $0.234 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 209257012101016 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN RECEPTACLE 12 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90642 pcs | Data sheet | 9257 Mini I/O Connector |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | 9257 | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Other Names | 209257012101006 478-5479-2 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 12 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold |
| Current Rating | 0.5A per Contact | Contact Type | Female Blade Socket |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
