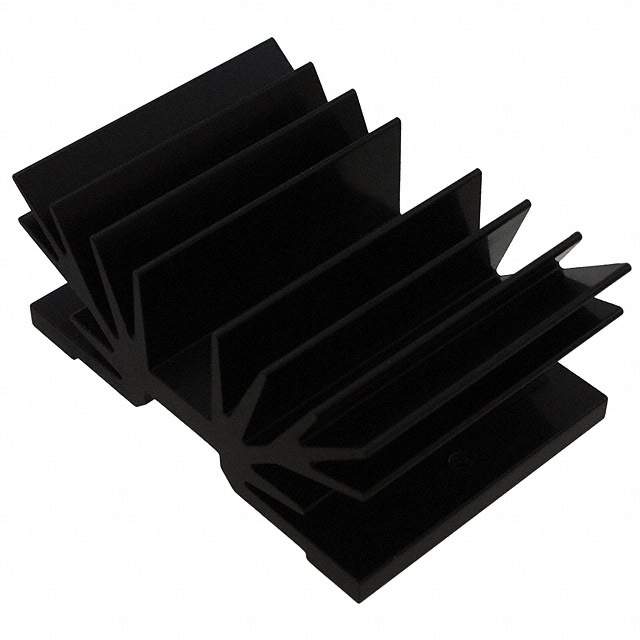

V5224C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V5224C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V5224C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V5224C |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEATSINK ALUM ANOD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.095 | $1.067 | $1.039 | $0.981 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.923 | $0.865 | $0.837 | $0.75 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | V5224C | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEATSINK ALUM ANOD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46862 pcs | Data sheet | V5224C Drawing |
| Category | Fans, Thermal Management | Width | 2.126" (54.00mm) |
| Type | Board Level | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | SOT-32, TO-220, TOP-3 | Other Names | AE10826 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 1.476" (37.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.886" (22.50mm) | Diameter | - |
| Detailed Description | Heat Sink SOT-32, TO-220, TOP-3 Aluminum Board Level | Attachment Method | Bolt On |
