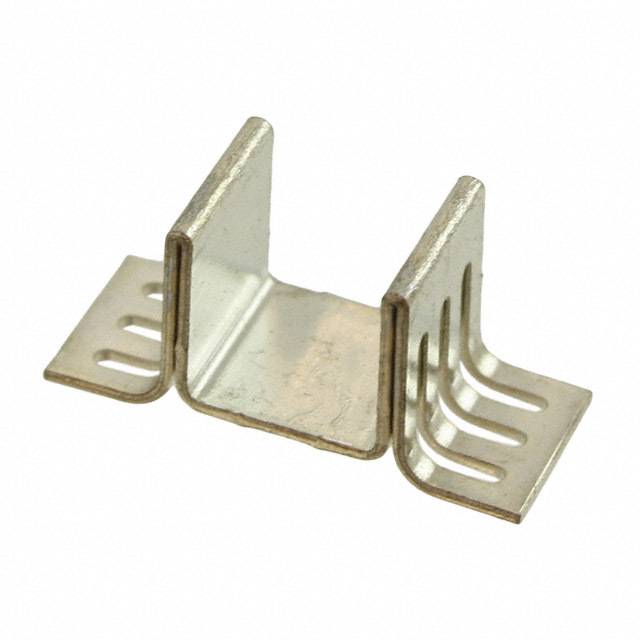

V-1100-SMD/B-L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V-1100-SMD/B-L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V-1100-SMD/B-L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V-1100-SMD/B-L |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEAT SINK ALUM DPAK TO-252 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.166 | $0.159 | $0.151 | $0.147 | $0.145 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.135 | $0.127 | $0.115 | $0.111 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | V-1100-SMD/B-L | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEAT SINK ALUM DPAK TO-252 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179830 pcs | Data sheet | V-1100-SMD/B Drawing |
| Category | Fans, Thermal Management | Width | 0.790" (20.07mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 25.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-252 (DPak) | Other Names | AE10775 V1100SMDBL |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 0.320" (8.13mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.390" (9.91mm) | Diameter | - |
| Detailed Description | Heat Sink TO-252 (DPak) Copper Top Mount | Attachment Method | SMD Pad |
