V-1100-SMD/A-L

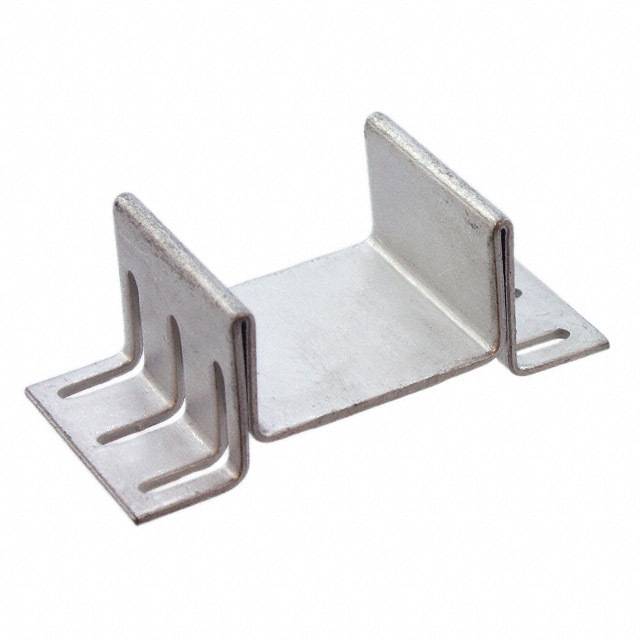

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V-1100-SMD/A-L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V-1100-SMD/A-L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V-1100-SMD/A-L |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEATSINK TO-263 12.70X26.20MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.155 | $0.149 | $0.142 | $0.138 | $0.136 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.127 | $0.119 | $0.108 | $0.104 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | V-1100-SMD/A-L | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEATSINK TO-263 12.70X26.20MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 231597 pcs | Data sheet | V-1100-SMD/A(-L) Drawing |
| Category | Fans, Thermal Management | Width | 1.031" (26.20mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 23.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-263 (D²Pak) | Other Names | A10760 V1100SMDAL |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 0.500" (12.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.390" (9.91mm) | Diameter | - |
| Detailed Description | Heat Sink TO-263 (D²Pak) Copper Top Mount | Attachment Method | SMD Pad |
