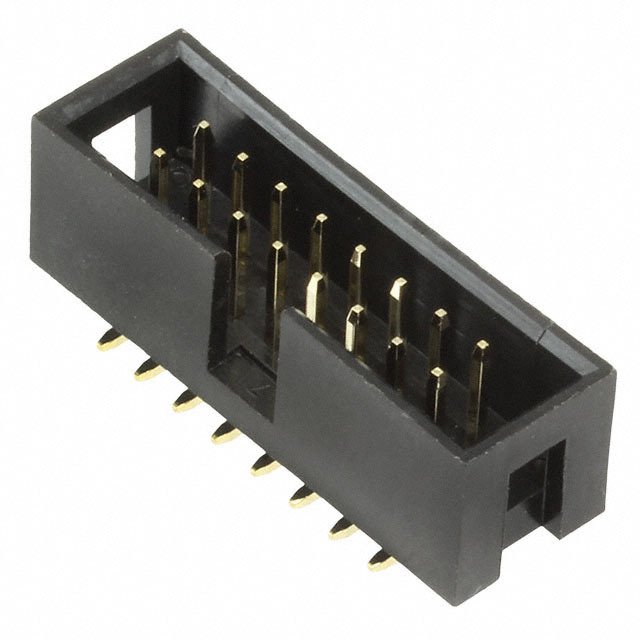

AWHW 16G-SMD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWHW 16G-SMD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWHW 16G-SMD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWHW 16G-SMD |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN HEADER LO-PRO 16POS AU SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.54 | $0.488 | $0.419 | $0.349 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.299 | $0.265 | $0.259 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWHW 16G-SMD | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN HEADER LO-PRO 16POS AU SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81185 pcs | Data sheet | AWHW-xx G-SMD Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | AE11242 AWHW-16 G-SMD AWHW-16 G-SMD-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Insulation Height | 0.354" (9.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 16 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.232" (5.90mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
