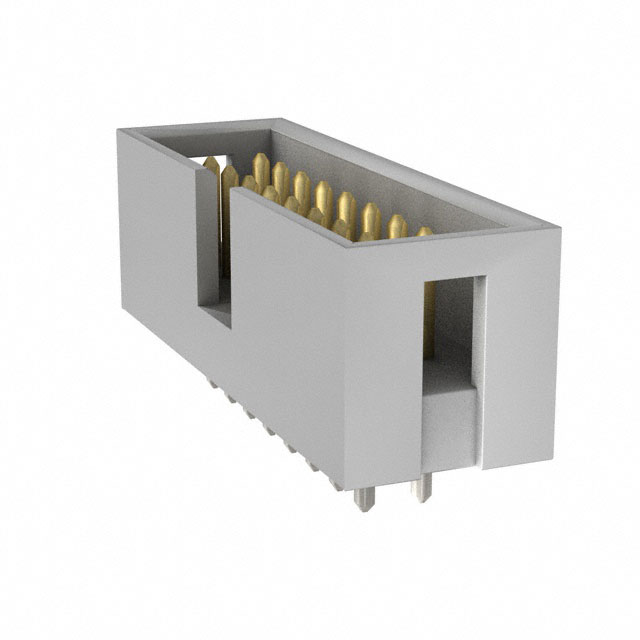

AWHW 16G-0202-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWHW 16G-0202-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWHW 16G-0202-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWHW 16G-0202-T |
|---|---|
| Manufacturer | Assmann WSW Components |
| Description | CONN HEADER LOW-PRO 16POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 180 pcs | ||||
|---|---|---|---|---|---|
| $0.18 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWHW 16G-0202-T | Manufacturer | Assmann WSW Components |
|---|---|---|---|
| Description | CONN HEADER LOW-PRO 16POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104536 pcs | Data sheet | AWHW-xxG-0x02-T Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Brass |
| Type Attributes | - | Termination | Solder |
| Style | Board to Cable/Wire | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | - | Row Spacing - Mating | Shrouded - 4 Wall |
| RoHS Status | Tray | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.130" (3.30mm) |
| Other Names | AWHW-16G-0202-T AWHW-16G-0202-T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 16 |
| Number of Contacts | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 20 Weeks |
| Manufacturer Part Number | AWHW 16G-0202-T | Length - Post (Mating) | - |
| Insulation Material | Tin | Insulation Height | - |
| Features | Keying Slot | Expanded Description | 16 Positions Header Connector 0.100" (2.54mm) Through Hole Gold |
| Description | CONN HEADER LOW-PRO 16POS GOLD | Current Rating | 3A |
| Current - Max/Contact | - | Contact Length - Post | 0.224" (5.70mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | Flash |
| Contact Finish - Mating | 0.354" (9.00mm) | Connector Type | Header |
| Actual Diameter | Gray |
