Home > Products > Switches > Tactile Switches > 3FSH9

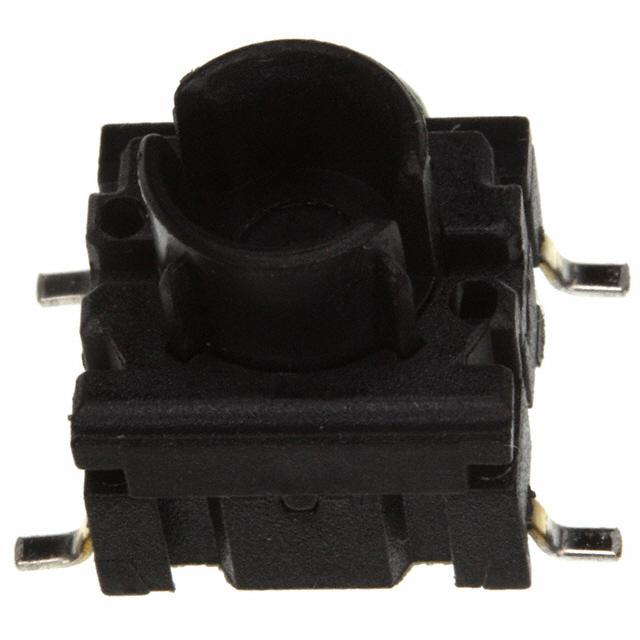

3FSH9

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3FSH9 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	3FSH9
Manufacturer	APEM Inc.
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	300 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 68451 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.034	$0.995	$0.915	$0.796	$0.756
	$0.736	$0.716	$0.557	$0.517

Product parameter
Data sheet

Product parameter

Part Number	3FSH9	Manufacturer	APEM Inc.
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	68451 pcs	Data sheet	MEC Catalog 3C, 3E, 3F multimec® Series Datasheet
Category	Switches	Termination Style	Gull Wing
Switch Travel	1.00mm	Switch Function	Off-Mom
Series	Multimec® 3	Packaging	Tube
Outline	10.10mm x 10.10mm	Other Names	679-2226
Operating Temperature	-40°C ~ 160°C	Operating Force	300gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	29 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Sealed - Flux Protection
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Plunger for Cap
Actuator Orientation	Top Actuated	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	10.40mm
