TIP147G

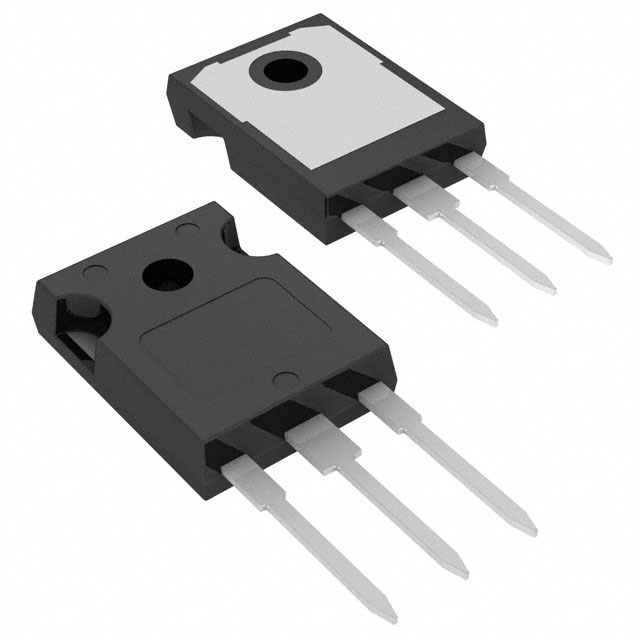

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TIP147G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TIP147G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TIP147G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS PNP DARL 100V 10A TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | 1020 pcs |
|---|---|---|---|---|---|
| $0.723 | $0.613 | $0.522 | $0.429 | $0.356 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TIP147G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS PNP DARL 100V 10A TO247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67094 pcs | Data sheet | TIP140-142,145-147 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | Transistor Type | PNP - Darlington |
| Supplier Device Package | TO-247-3 | Series | - |
| Power - Max | 125W | Packaging | Tube |
| Package / Case | TO-247-3 | Other Names | TIP147GOS |
| Operating Temperature | -65°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor PNP - Darlington 100V 10A 125W Through Hole TO-247-3 | DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V |
| Current - Collector Cutoff (Max) | 2mA | Current - Collector (Ic) (Max) | 10A |
| Base Part Number | TIP14* |
