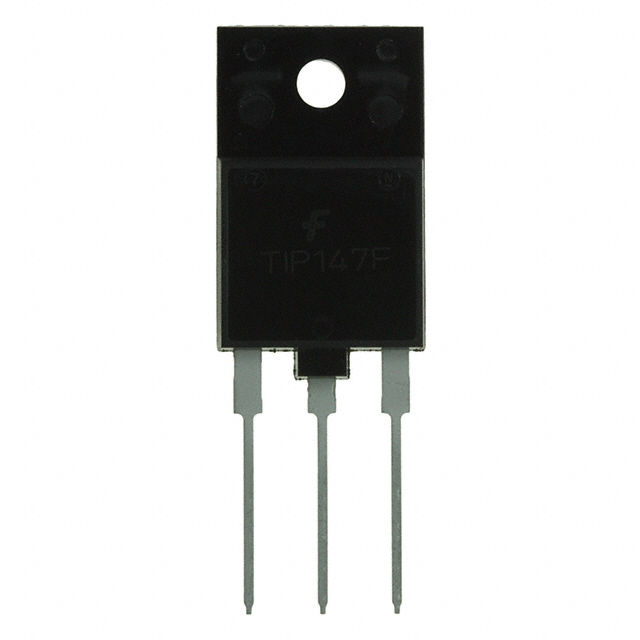

TIP147FTU
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TIP147FTU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TIP147FTU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TIP147FTU |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS PNP DARL 100V 10A TO3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 360 pcs | 720 pcs | 1080 pcs |
|---|---|---|---|---|---|
| $0.631 | $0.567 | $0.428 | $0.375 | $0.31 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TIP147FTU | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS PNP DARL 100V 10A TO3PF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70739 pcs | Data sheet | TIP145F-47F |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | Transistor Type | PNP - Darlington |
| Supplier Device Package | TO-3PF | Series | - |
| Power - Max | 125W | Packaging | Tube |
| Package / Case | SC-94 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor PNP - Darlington 100V 10A 125W Through Hole TO-3PF |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | Current - Collector Cutoff (Max) | 2mA |
| Current - Collector (Ic) (Max) | 10A | Base Part Number | TIP147 |
