TIP142TTU

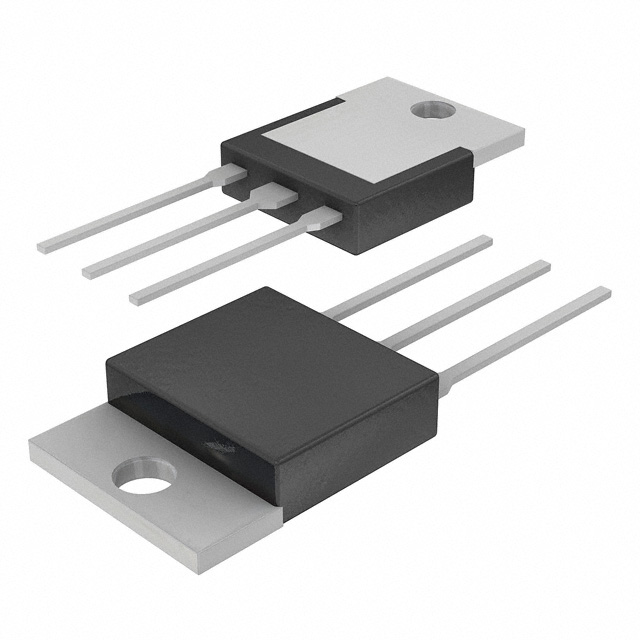

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TIP142TTU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TIP142TTU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TIP142TTU |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN DARL 100V 10A TO220-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.589 | $0.528 | $0.412 | $0.34 | $0.268 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TIP142TTU | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS NPN DARL 100V 10A TO220-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78844 pcs | Data sheet | TO220B03 Pkg DrawingTIP140-42T |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | Transistor Type | NPN - Darlington |
| Supplier Device Package | TO-220-3 | Series | - |
| Power - Max | 80W | Packaging | Tube |
| Package / Case | TO-220-3 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 100V 10A 80W Through Hole TO-220-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | Current - Collector Cutoff (Max) | 2mA |
| Current - Collector (Ic) (Max) | 10A | Base Part Number | TIP142 |
