Home > Products > Integrated Circuits (ICs) > PMIC - Motor Drivers, Controllers > STK681-352-E

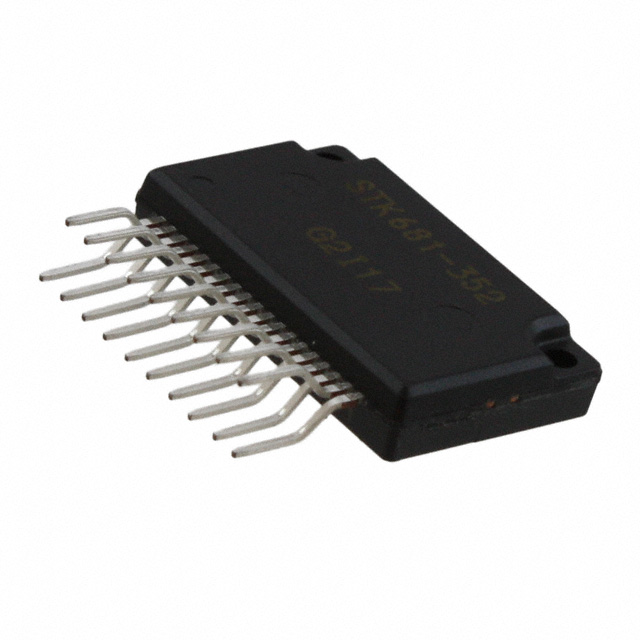

STK681-352-E

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STK681-352-E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STK681-352-E
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER PAR 19SIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4331 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	STK681-352-E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER PAR 19SIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4331 pcs	Data sheet	STK681-352-E
Category	Integrated Circuits (ICs)	Voltage - Supply	0 V ~ 5.5 V
Voltage - Load	18 V ~ 29 V	Technology	Power MOSFET
Supplier Device Package	-	Step Resolution	-
Series	-	Packaging	Bulk
Package / Case	19-SSIP Formed Leads	Output Configuration	Half Bridge (2)
Other Names	STK681-352-E-ND STK681-352-EOS STK681352E	Operating Temperature	-20°C ~ 105°C (TC)
Mounting Type	Through Hole	Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Power MOSFET Parallel
Current - Output	4.6A	Base Part Number	STK681
Applications	General Purpose
