Home > Products > Integrated Circuits (ICs) > PMIC - Full, Half-Bridge Drivers > STK681-210-E

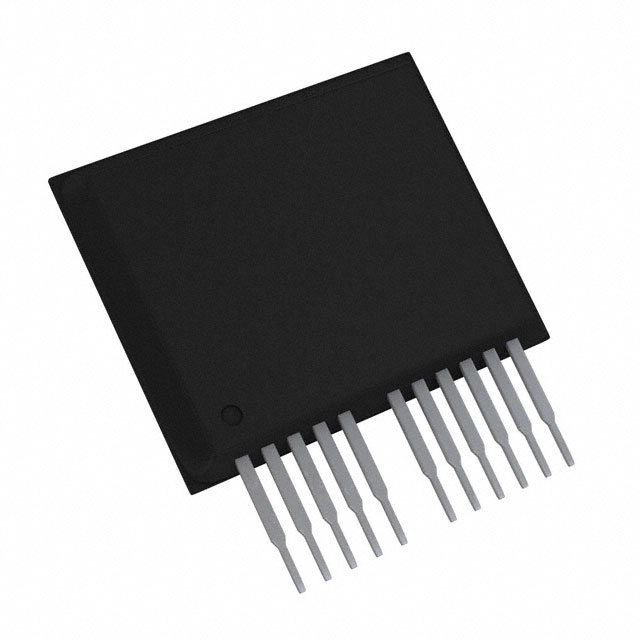

STK681-210-E

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STK681-210-E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STK681-210-E
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4416 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	STK681-210-E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4416 pcs	Data sheet	STK681-210-E
Category	Integrated Circuits (ICs)	Voltage - Supply	4.75 V ~ 5.25 V
Voltage - Load	10 V ~ 42 V	Technology	Power MOSFET
Supplier Device Package	12-SIP	Series	-
Rds On (Typ)	-	Packaging	Tube
Package / Case	12-SIP, 11 Leads	Output Configuration	Half Bridge (2)
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Logic
Features	-	Fault Protection	-
Detailed Description	Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET 12-SIP	Current - Peak Output	8A
Current - Output / Channel	5.2A	Applications	DC Motors, General Purpose
