NTNS3A65PZT5G

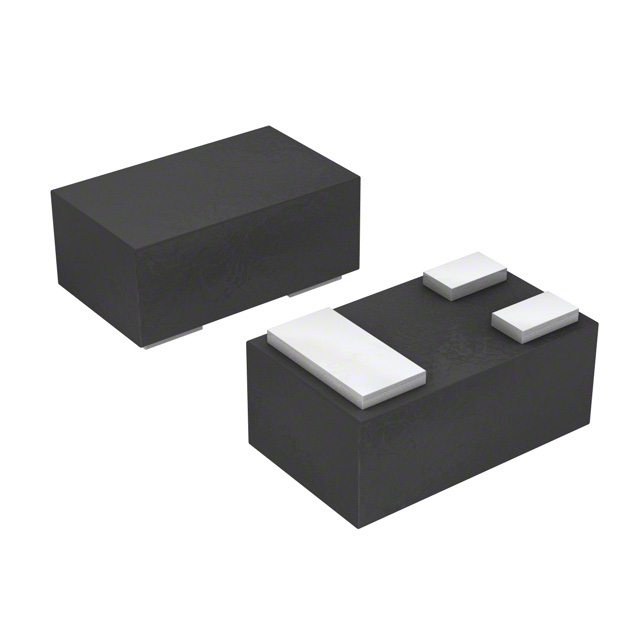

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTNS3A65PZT5G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTNS3A65PZT5G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTNS3A65PZT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET P-CH 20V 0.281A SOT883 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.206 | $0.146 | $0.096 | $0.057 | $0.044 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NTNS3A65PZT5G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 20V 0.281A SOT883 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 527635 pcs | Data sheet | NTNS3A65PZ |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-883 (XDFN3) (1x0.6) | Series | - |
| Rds On (Max) @ Id, Vgs | 1.3 Ohm @ 200mA, 4.5V | Power Dissipation (Max) | 155mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | SC-101, SOT-883 |
| Other Names | NTNS3A65PZT5GOSCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 44pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 1.1nC @ 4.5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | P-Channel 20V 281mA (Ta) 155mW (Ta) Surface Mount SOT-883 (XDFN3) (1x0.6) | Current - Continuous Drain (Id) @ 25°C | 281mA (Ta) |
