NTNS3190NZT5G

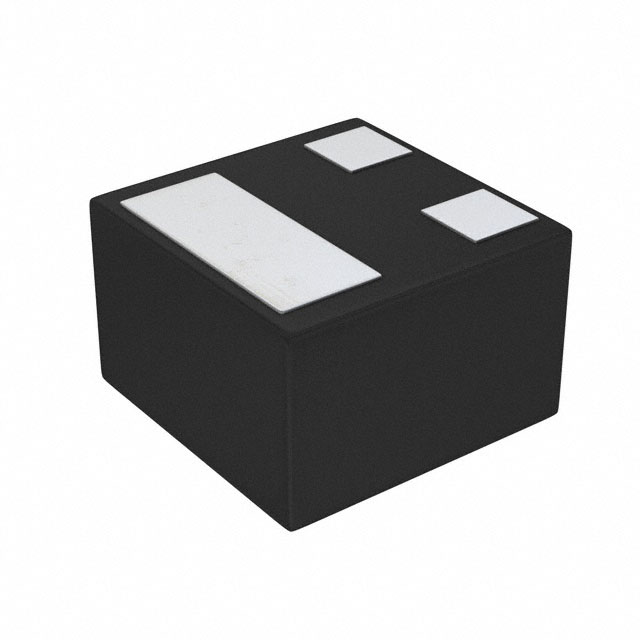

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTNS3190NZT5G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTNS3190NZT5G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTNS3190NZT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 20V 0.224A XLLGA3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.29 | $0.243 | $0.183 | $0.134 | $0.103 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NTNS3190NZT5G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 20V 0.224A XLLGA3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 182520 pcs | Data sheet | NTNS3190NZ |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 3-XLLGA (0.62x0.62) | Series | - |
| Rds On (Max) @ Id, Vgs | 1.4 Ohm @ 100mA, 4.5V | Power Dissipation (Max) | 120mW (Ta) |
| Packaging | Original-Reel® | Package / Case | 3-XFDFN |
| Other Names | NTNS3190NZT5GOSDKR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 15.8pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 0.7nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 224mA (Ta) 120mW (Ta) Surface Mount 3-XLLGA (0.62x0.62) | Current - Continuous Drain (Id) @ 25°C | 224mA (Ta) |
