NLAS3699BMN1R2G

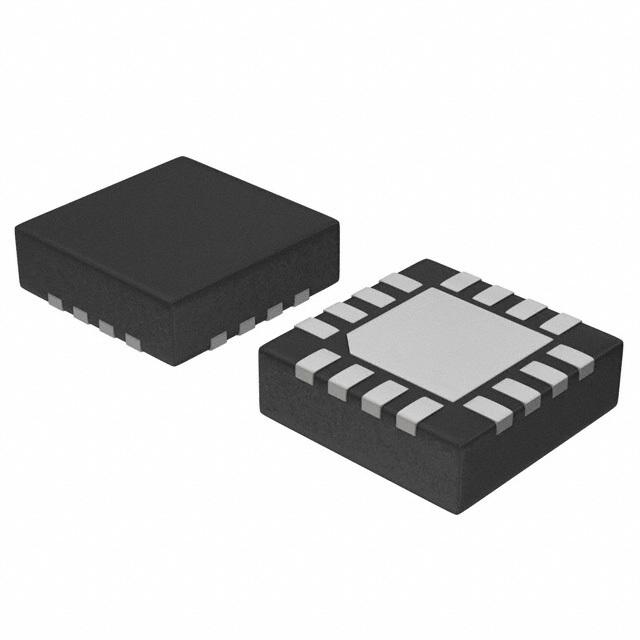

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NLAS3699BMN1R2G with confidence from Components-World.HK, 1 Year Warranty
Dowload NLAS3699BMN1R2G Details in PDFSee Product Specifications for product details.
Buy NLAS3699BMN1R2G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NLAS3699BMN1R2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SWITCH DUAL DPDT 16QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NLAS3699BMN1R2G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC SWITCH DUAL DPDT 16QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5765 pcs | Data sheet | NLAS3699B |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 4.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| Switch Circuit | DPDT | Supplier Device Package | 16-QFN (3x3) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad | Other Names | NLAS3699BMN1R2G-ND NLAS3699BMN1R2GOSTR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 550 mOhm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 2:2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:2 550 mOhm 16-QFN (3x3) | Current - Leakage (IS(off)) (Max) | 500nA |
| Crosstalk | -62dB @ 100kHz | Charge Injection | 50pC |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm | Channel Capacitance (CS(off), CD(off)) | 7pF |
| Base Part Number | NLAS3699B | -3db Bandwidth | 20MHz |
