NLAS3158MNR2G

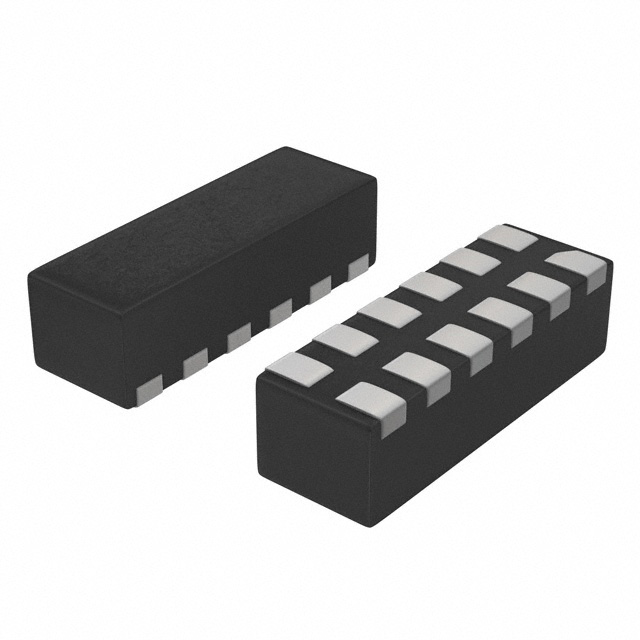

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NLAS3158MNR2G with confidence from Components-World.HK, 1 Year Warranty
Dowload NLAS3158MNR2G Details in PDFSee Product Specifications for product details.
Buy NLAS3158MNR2G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NLAS3158MNR2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SWITCH DUAL SPDT 12DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.219 | $0.192 | $0.147 | $0.117 | $0.093 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NLAS3158MNR2G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 12DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 224436 pcs | Data sheet | NLAS3158 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| Switch Circuit | SPDT | Supplier Device Package | 12-WDFN (3x1) |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 12-WFDFN | Other Names | NLAS3158MNR2GOSCT |
| Operating Temperature | -55°C ~ 125°C (TA) | On-State Resistance (Max) | 13 Ohm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 13 Ohm 12-WDFN (3x1) | Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -54dB @ 10MHz | Charge Injection | 7pC |
| Channel-to-Channel Matching (ΔRon) | 150 mOhm | Channel Capacitance (CS(off), CD(off)) | 2.3pF |
| Base Part Number | NLAS3158 | -3db Bandwidth | 250MHz |
