NJL1302DG

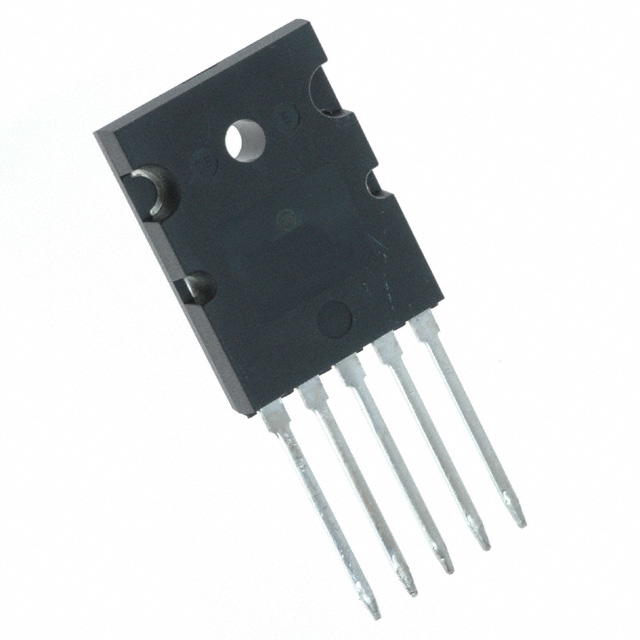

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NJL1302DG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NJL1302DG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NJL1302DG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS PNP 260V 15A TO-264 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.885 | $1.599 | $1.386 | $1.18 | $0.995 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NJL1302DG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS PNP 260V 15A TO-264 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31827 pcs | Data sheet | NJL3281,1302D |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 260V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 1A, 10A | Transistor Type | PNP + Diode (Isolated) |
| Supplier Device Package | TO-264 | Series | - |
| Power - Max | 200W | Packaging | Tube |
| Package / Case | TO-264-5 | Other Names | NJL1302DG-ND NJL1302DGOS |
| Operating Temperature | -65°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 30MHz |
| Detailed Description | Bipolar (BJT) Transistor PNP + Diode (Isolated) 260V 15A 30MHz 200W Through Hole TO-264 | DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 5A, 5V |
| Current - Collector Cutoff (Max) | 50µA (ICBO) | Current - Collector (Ic) (Max) | 15A |
