Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP5425SOEVB

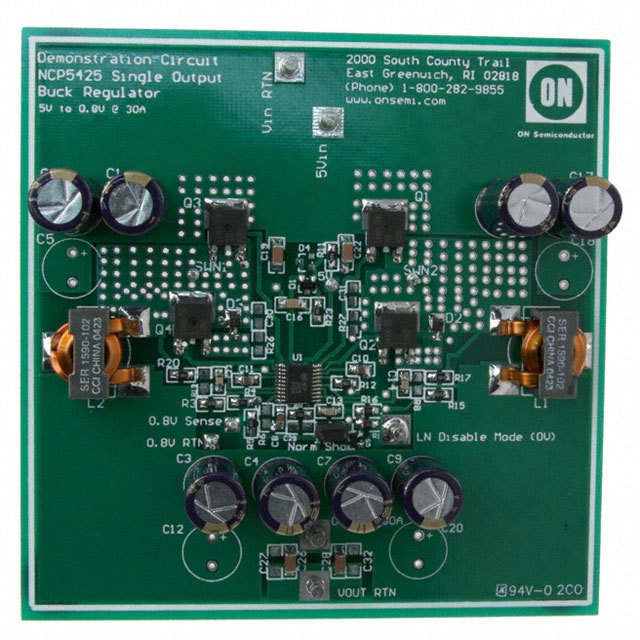

NCP5425SOEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP5425SOEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP5425SOEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5425SO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1033 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$33.154

Product parameter
Data sheet

Product parameter

Part Number	NCP5425SOEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5425SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1033 pcs	Data sheet	NCP5425 NCP5425 Single Out EVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	0.8V
Voltage - Input	4.6 V ~ 12 V	Utilized IC / Part	NCP5425
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	NCP5425SOEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	300kHz	Detailed Description	NCP5425 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	30A	Board Type	Fully Populated
