Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP5425DOEVB

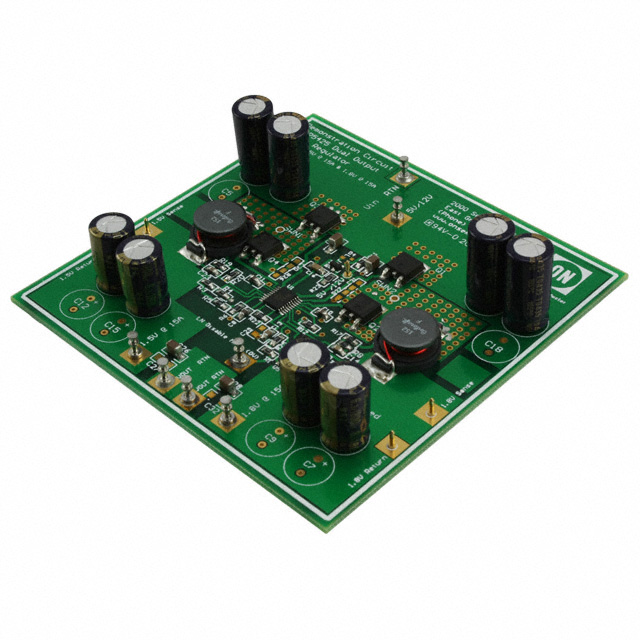

NCP5425DOEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP5425DOEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP5425DOEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5425DO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5989 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	NCP5425DOEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5425DO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5989 pcs	Data sheet	NCP5425 NCP5425 Demo Board Note
Category	Development Boards, Kits, Programmers	Voltage - Output	1.5V, 1.8V
Voltage - Input	4.6 V ~ 12 V	Utilized IC / Part	NCP5425
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Other Names	NCP5425DOEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	300kHz	Detailed Description	NCP5425 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Current - Output	17.5A, 17.5A	Board Type	Fully Populated
