Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP3063DIPBCKEVB

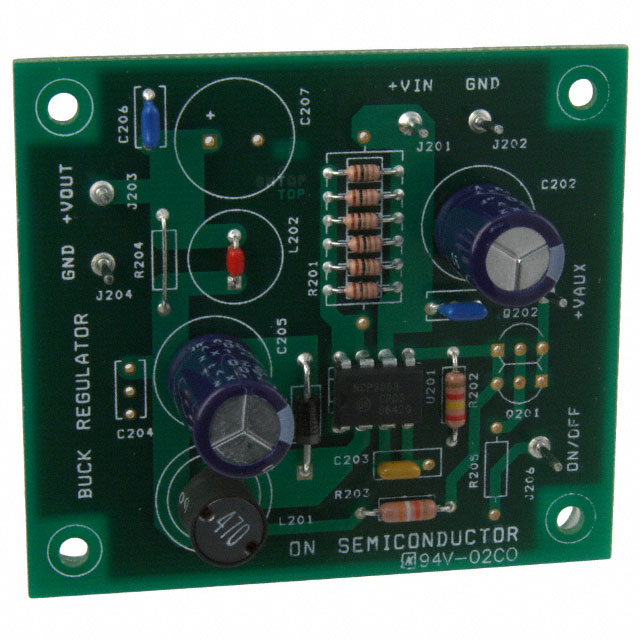

NCP3063DIPBCKEVB

NCP3063DIPBCKEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP3063DIPBCKEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP3063DIPBCKEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP3063DIPBCK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 962 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$36.787

Product parameter
Data sheet

Product parameter

Part Number	NCP3063DIPBCKEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP3063DIPBCK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	962 pcs	Data sheet	NCP3063 Buck DIP EVB Test Procedure NCP3063(B), NCV3063
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	7 V ~ 15 V	Utilized IC / Part	NCP3063
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	NCP3063DIPBCKEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	250kHz	Detailed Description	NCP3063 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	800mA	Board Type	Fully Populated
