Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP3063DFBSTGEVB

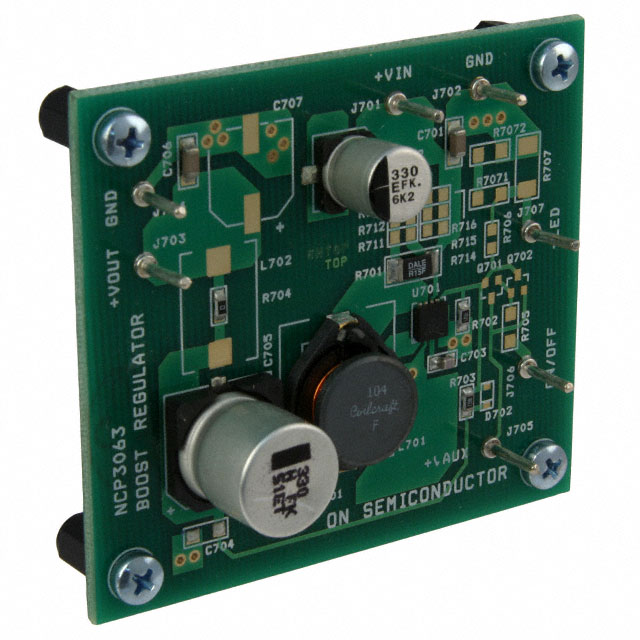

NCP3063DFBSTGEVB

NCP3063DFBSTGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP3063DFBSTGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP3063DFBSTGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP3063DFBSTG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 964 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$35.571

Product parameter
Data sheet

Product parameter

Part Number	NCP3063DFBSTGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP3063DFBSTG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	964 pcs	Data sheet	NCP3063 Boost - DFN Test Procedure NCP3063(B), NCV3063
Category	Development Boards, Kits, Programmers	Voltage - Output	24V
Voltage - Input	12V	Utilized IC / Part	NCP3063
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	1, Non-Isolated
Other Names	NCP3063DFBSTGEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Up	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	NCP3063 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Current - Output	350mA	Board Type	Fully Populated
