Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > NCP1422LEDGEVB

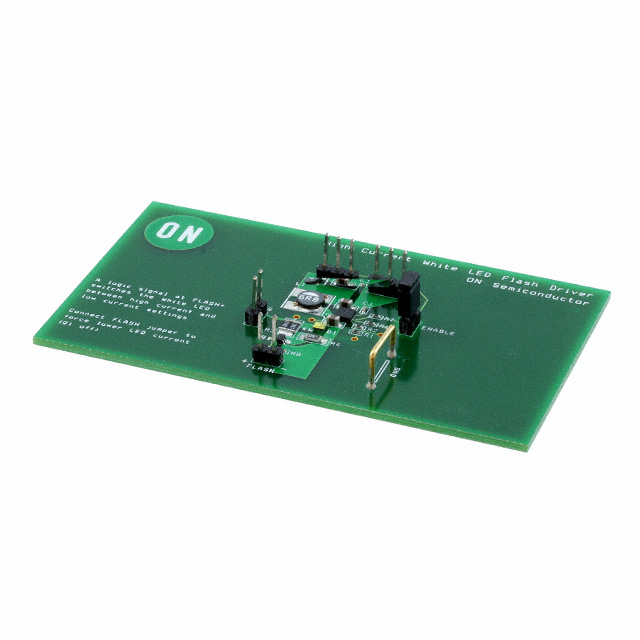

NCP1422LEDGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1422LEDGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1422LEDGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1422LED
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1095 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$28.614

Product parameter
Data sheet

Product parameter

Part Number	NCP1422LEDGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1422LED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1095 pcs	Data sheet	NCP1422LEDGEVB Test Procedure NCP1422
Category	Development Boards, Kits, Programmers	Voltage - Output	3.5V
Voltage - Input	3.6V	Utilized IC / Part	NCP1422
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	NCP1422LEDEVBOS NCP1422LEDEVBOS-ND NCP1422LEDGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	NCP1422 1, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	800mA
