Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1421EVB

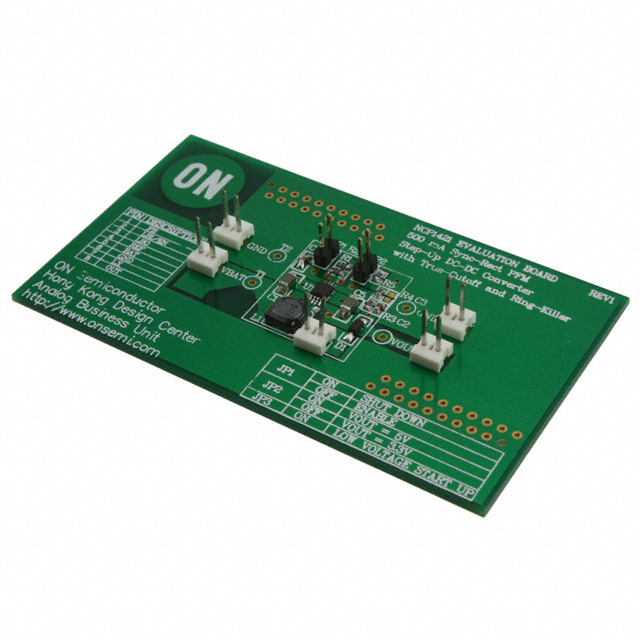

NCP1421EVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1421EVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1421EVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1421
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1492 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.866

Product parameter
Data sheet

Product parameter

Part Number	NCP1421EVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1421	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1492 pcs	Data sheet	NCP1421 NCP1421 Test Procedure NCP1421/2 AppNote
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V or 5V
Voltage - Input	3V	Utilized IC / Part	NCP1421
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	1, Non-Isolated
Other Names	NCP1421EVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Up	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	1.2MHz	Detailed Description	NCP1421 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Current - Output	600mA	Board Type	Fully Populated
