Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1075SOTGEVB

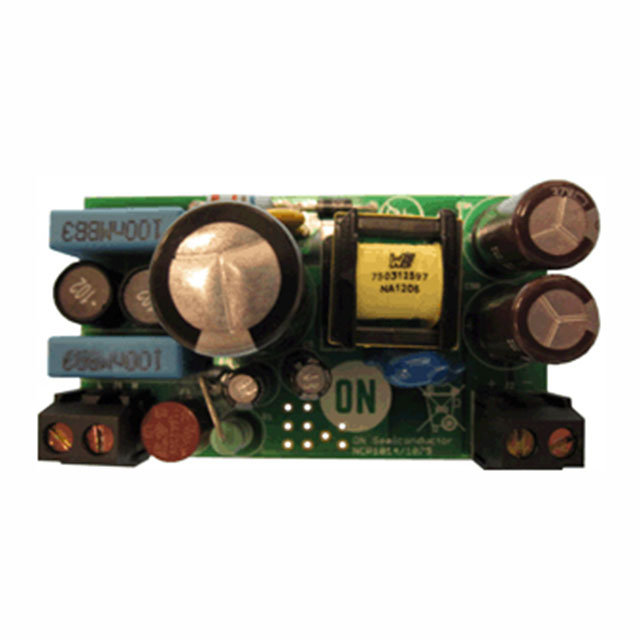

NCP1075SOTGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1075SOTGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1075SOTGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1075SOTG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1084 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$27.513

Product parameter
Data sheet

Product parameter

Part Number	NCP1075SOTGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1075SOTG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1084 pcs	Data sheet	NCP1070-72,75-77 NCP1075SOTGEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	12V
Voltage - Input	180 ~ 270 VAC	Utilized IC / Part	NCP1075
Supplied Contents	Board(s)	Series	-
Regulator Topology	Flyback	Power - Output	10W
Outputs and Type	1, Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	AC/DC, Primary Side	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	100kHz	Detailed Description	NCP1075 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Current - Output	800mA	Board Type	Fully Populated
