Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1075NONGEVB

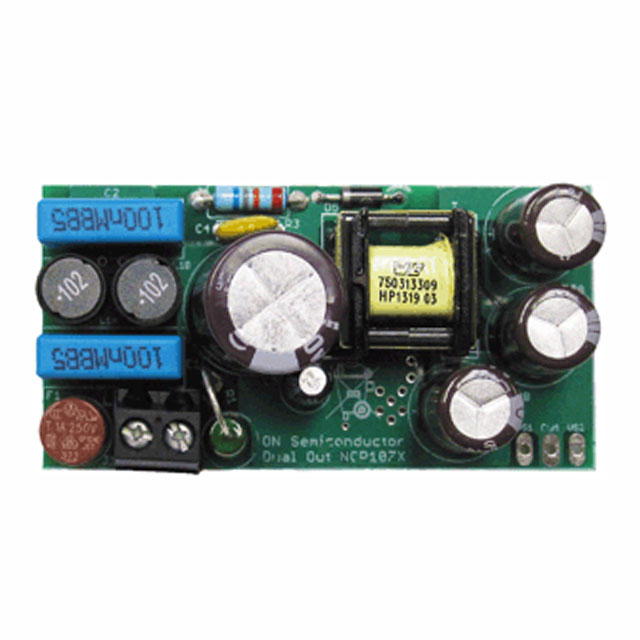

NCP1075NONGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1075NONGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1075NONGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1075NONG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1368 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$25.116

Product parameter
Data sheet

Product parameter

Part Number	NCP1075NONGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1075NONG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1368 pcs	Data sheet	NCP1070-72,75-77 MMSZ52zzzT1G, SZMMSZ52zzzT1G Series NST45011MW6T1G,3G NCP1075NONGEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	5V, 8.5V
Voltage - Input	180 ~ 270 VAC	Utilized IC / Part	NCP1075
Supplied Contents	Board(s)	Series	-
Regulator Topology	Flyback	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	AC/DC, Primary Side
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	100kHz
Detailed Description	NCP1075 - AC/DC, Primary Side 2, Non-Isolated Outputs Evaluation Board	Current - Output	-
Board Type	Fully Populated
