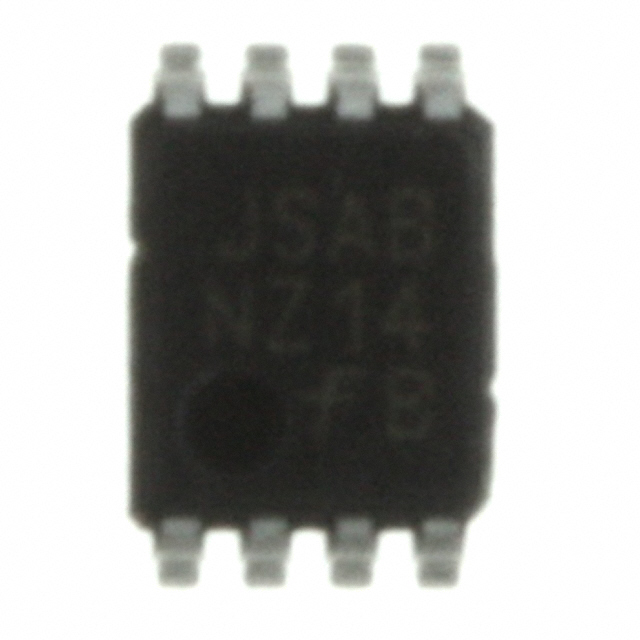

NC7NZ14K8X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NC7NZ14K8X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NC7NZ14K8X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NC7NZ14K8X |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC INVERTER SCHMITT 3CH US8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.051 | $0.048 | $0.045 | $0.042 | $0.041 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NC7NZ14K8X | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC INVERTER SCHMITT 3CH US8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 503391 pcs | Data sheet | NC7NZ14 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 1.65 V ~ 5.5 V |
| Supplier Device Package | US8 | Series | 7NZ |
| Packaging | Tape & Reel (TR) | Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Other Names | NC7NZ14K8XTR | Operating Temperature | -40°C ~ 85°C |
| Number of Inputs | 3 | Number of Circuits | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Propagation Delay @ V, Max CL | 5.9ns @ 5V, 50pF | Manufacturer Standard Lead Time | 24 Weeks |
| Logic Type | Inverter | Logic Level - Low | 0.25 V ~ 1.2 V |
| Logic Level - High | 1.5 V ~ 3.6 V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Schmitt Trigger | Detailed Description | Inverter IC 3 Channel Schmitt Trigger US8 |
| Current - Quiescent (Max) | 1µA | Current - Output High, Low | 32mA, 32mA |
| Base Part Number | 7NZ14 |
