NC7NP14L8X

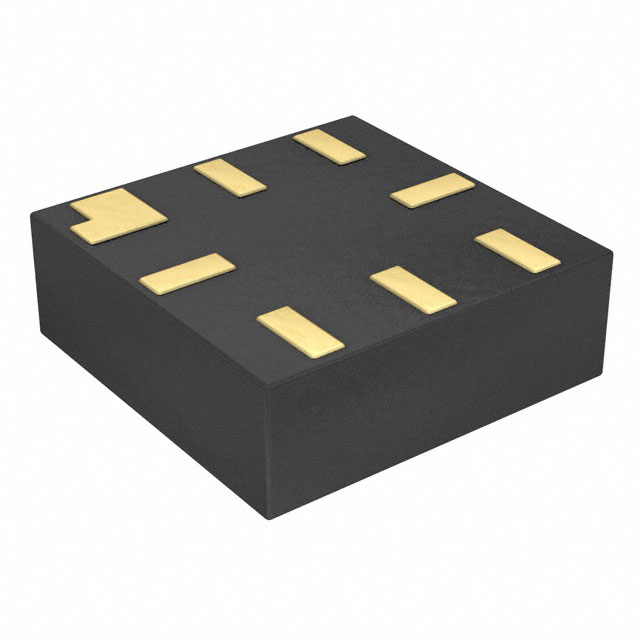

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NC7NP14L8X with confidence from Components-World.HK, 1 Year Warranty
Dowload NC7NP14L8X Details in PDFSee Product Specifications for product details.
Buy NC7NP14L8X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NC7NP14L8X |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC INVERTER SCHMITT 3CH 8MICROPK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 25000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.072 | $0.069 | $0.066 | $0.065 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NC7NP14L8X | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC INVERTER SCHMITT 3CH 8MICROPK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 333250 pcs | Data sheet | NC7NP14 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 0.9 V ~ 3.6 V |
| Supplier Device Package | 8-MicroPak™ | Series | 7NP |
| Packaging | Tape & Reel (TR) | Package / Case | 8-UFQFN |
| Other Names | NC7NP14L8XTR | Operating Temperature | -40°C ~ 85°C |
| Number of Inputs | 3 | Number of Circuits | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 3.3V, 30pF | Manufacturer Standard Lead Time | 24 Weeks |
| Logic Type | Inverter | Logic Level - Low | 0.1 V ~ 0.6 V |
| Logic Level - High | 0.6 V ~ 2.6 V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Schmitt Trigger | Detailed Description | Inverter IC 3 Channel Schmitt Trigger 8-MicroPak™ |
| Current - Quiescent (Max) | 900nA | Current - Output High, Low | 2.6mA, 2.6mA |
| Base Part Number | 7NP14 |
